Azure VNet Peering Explained: A Beginner's Guide with Hands-On Lab

In this blog we will learn

• What is VNET Peering?

• Regional VS Global VNET Peering

• Hub and Spoke Architecture

• Subnet Peering

• Different settings in VNET Peering

• Hands-on lab

What is the default behaviour of the Azure VNET?

By default, Azure VNETs are completely isolated from each other and cannot communicate with each other through private IP addresses. To make them capable of communicating with each other, you need VNET peering.

Suppose you have:

VNET A → VNET A, Web Server

VNET B → SQL DB

Without peering web server cannot reach SQL privately.

What is VNET Peering?

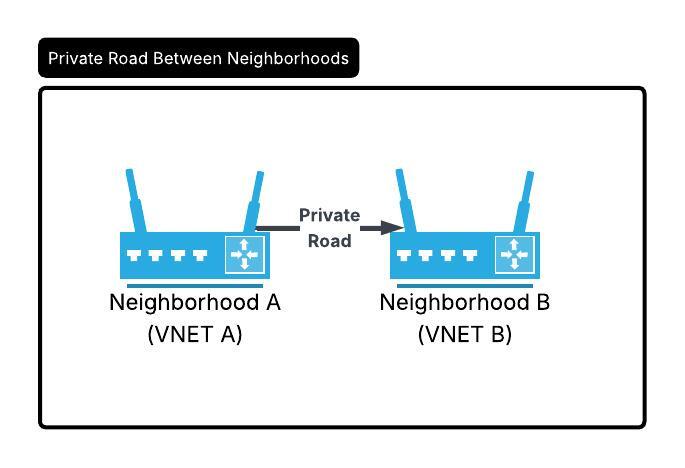

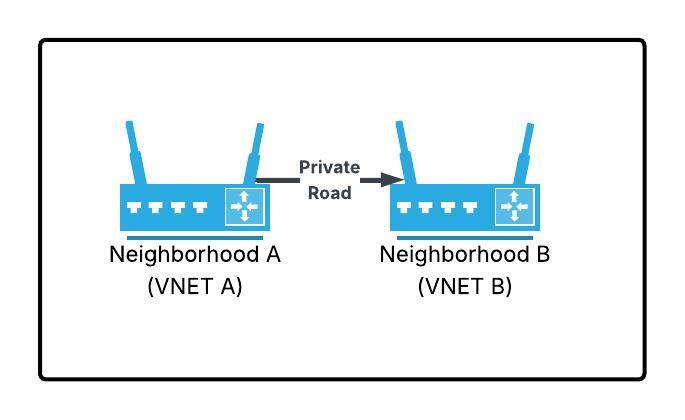

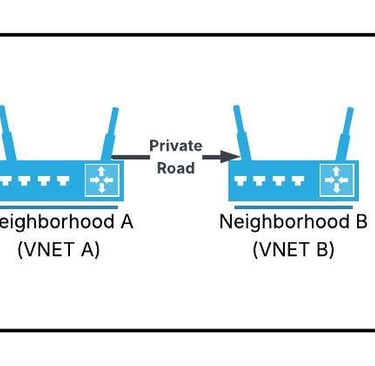

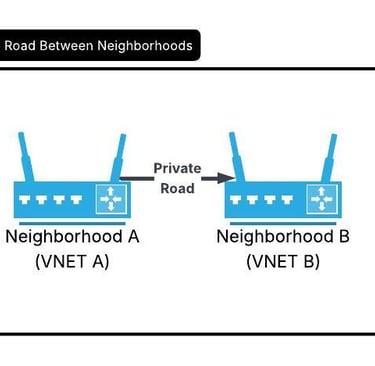

If you consider VNET as a neighborhood and VMs, databases, apps as houses and offices inside the neighborhood; peering is building private roads between neighborhoods so traffic does not need to go on public highways (the internet).

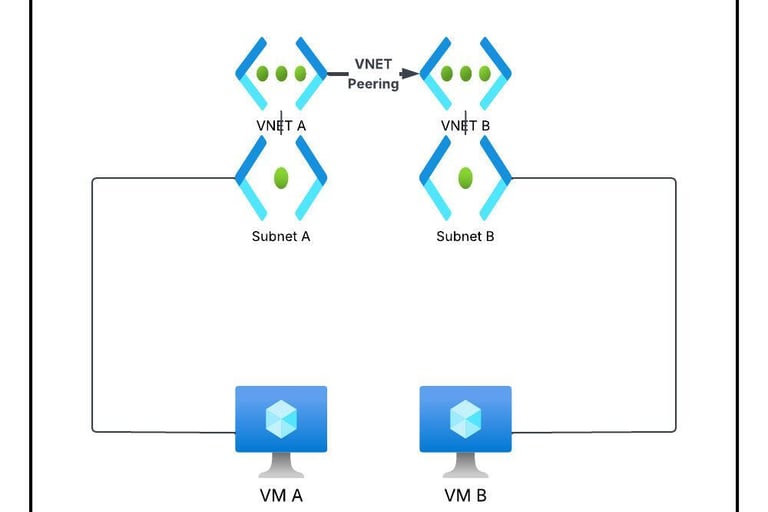

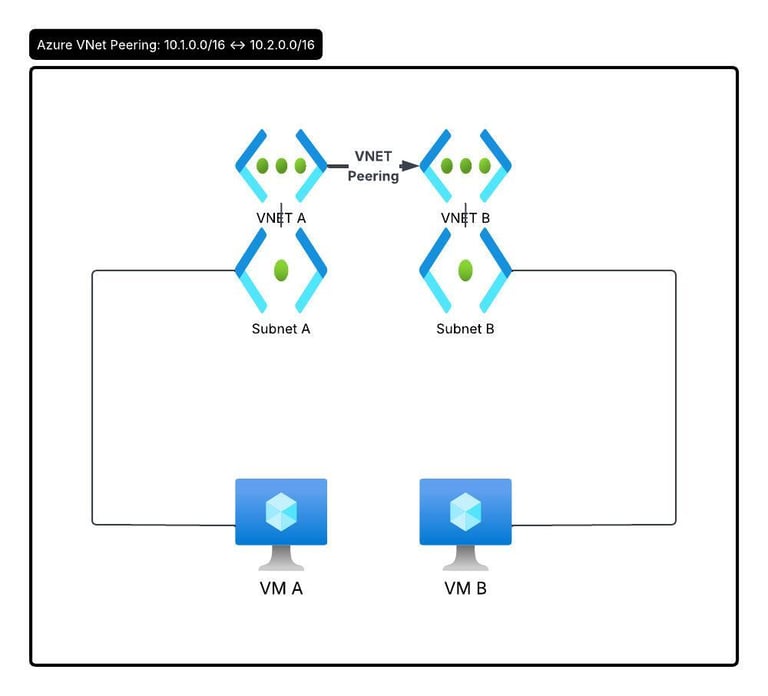

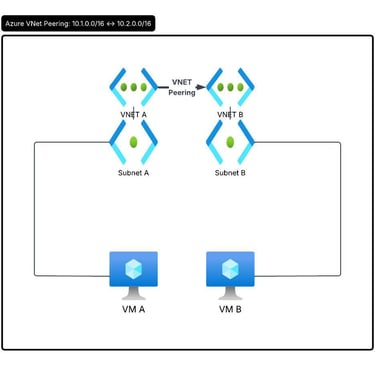

With VNET Peering:

VM1 in VNET A can talk to VM2 in VNET B.

With peering, web server in VNET A connects directly to SQL DB in VNET B over Azure's private backbone Network. Traffic does not get exposed to public internet. You do not require any VPN Gateway and latency remains very low.

All communication remains within Microsoft's backbone network.

Global VNET Peering:

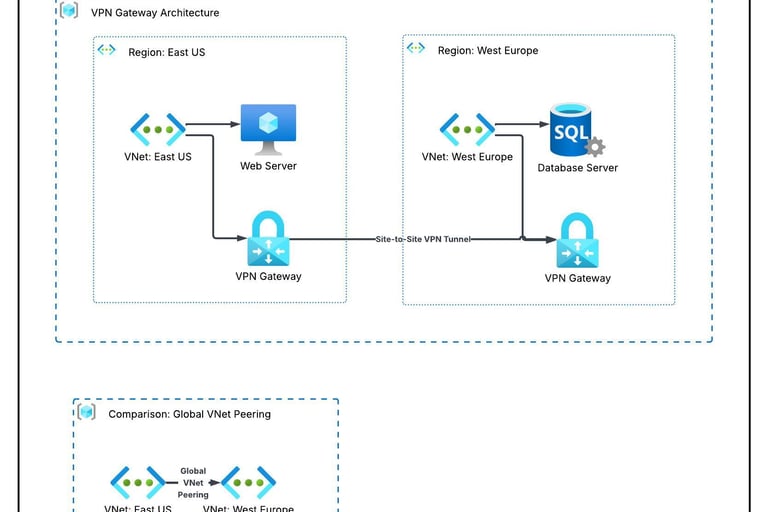

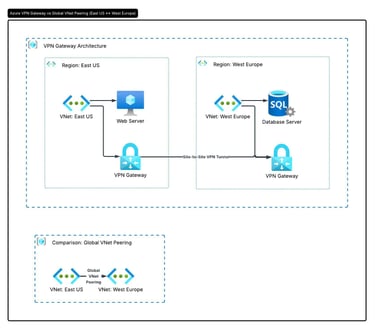

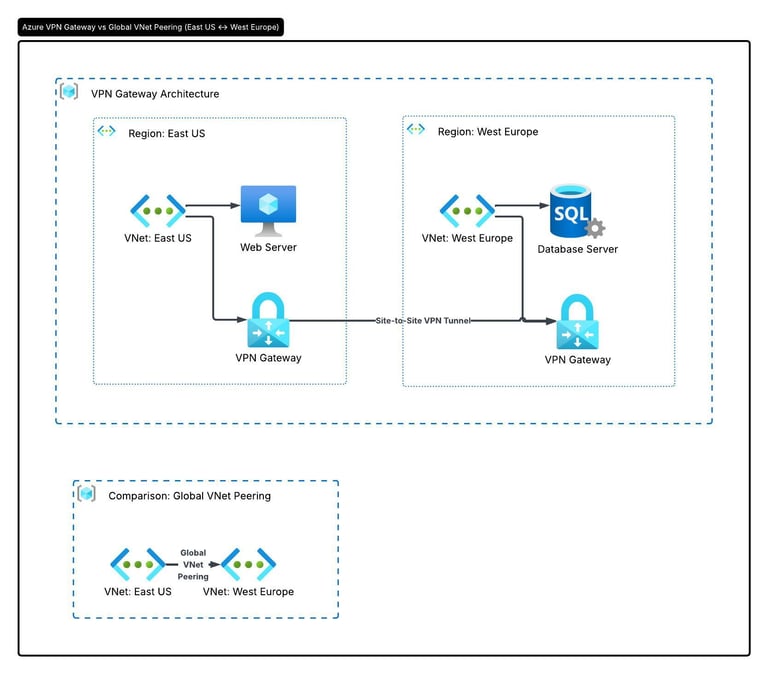

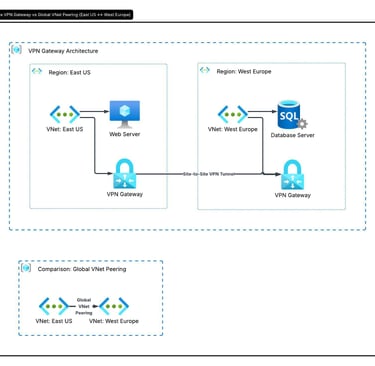

Earlier, organizations often connected VNETs in different Azure regions using VPN Gateway or Express Route Circuit. After Global VNET peering is introduced , you can connect East US VNET with West Europe VNET, while those expensive solutions do not need to be deployed anymore and traffic also stays completely in Microsoft's private backbone network.

Why is Global Peering needed?

Disaster recovery: Data backup between primary and secondary regions

Adherence to Compliance: Connecting localized Spokes to centralized hub while no data is exposed to public internet.

Differences between Global VNET Peering and Regional VNET Peering:

• Cost Model: Local VNET Peering carries very minimal ingress and egress charges for traffic in same region, Global VNET peering follows Zonal Pricing Model.

• Latency: Global VNET Peering will have higher latency in comparison to near-zero latency of regional peering as data physically travels across different continents or oceans.

• No Cross Cloud Peering: You cannot globally peer a network in Azure public cloud to a network inside a restricted cloud environment like Azure Government.

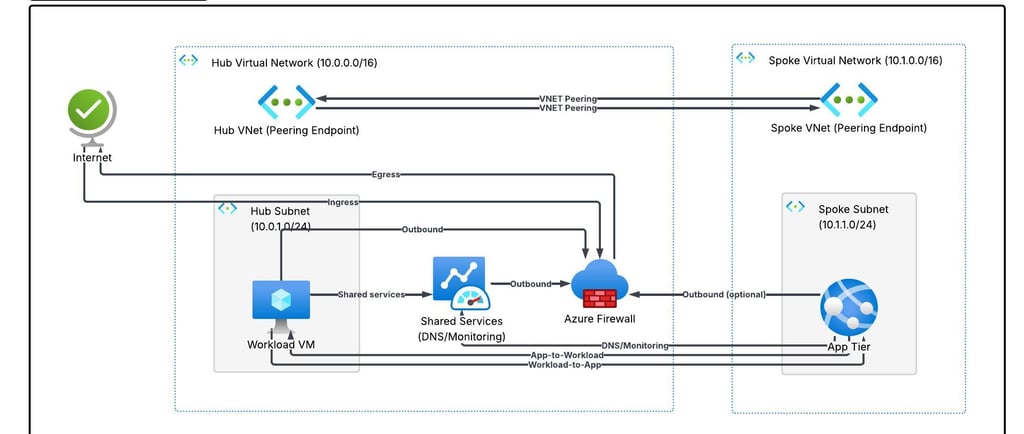

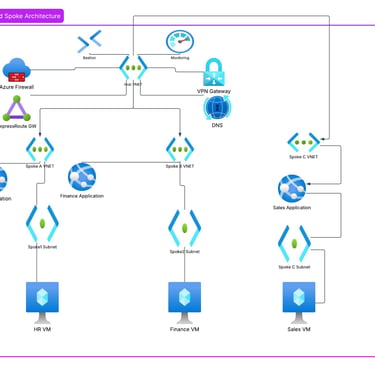

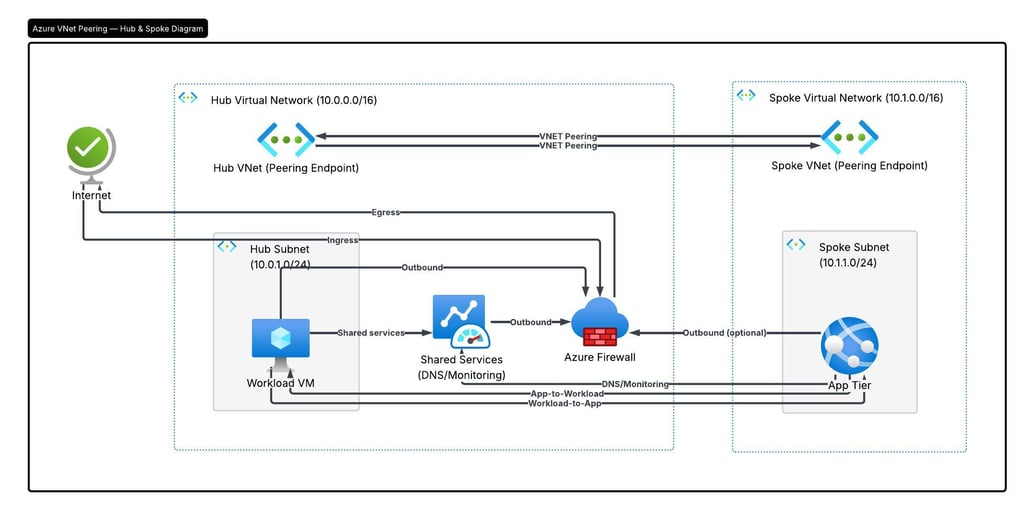

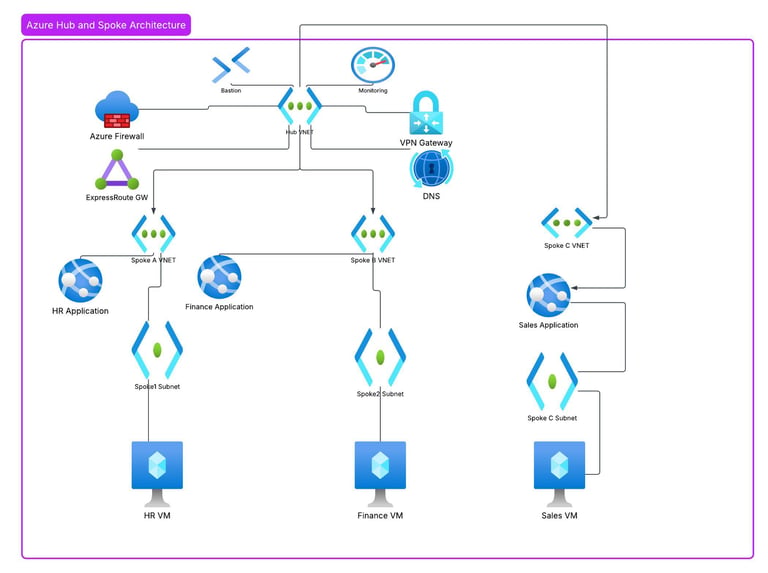

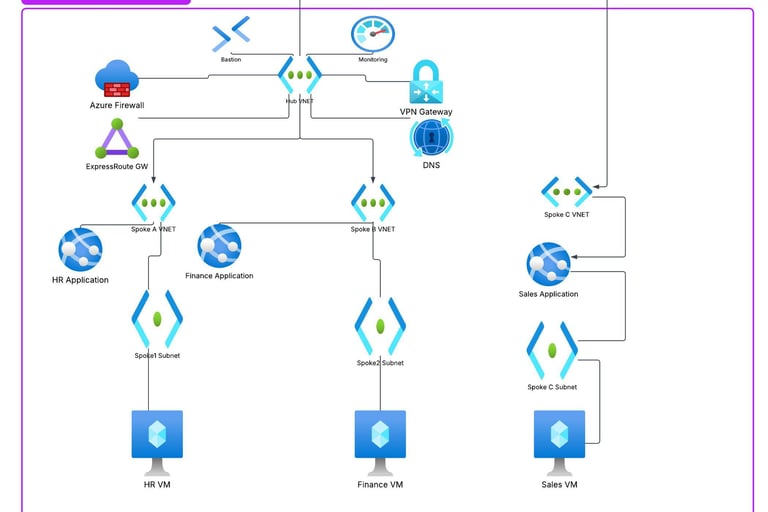

What is a Hub-And-Spoke architecture?

The Hub-And-Spoke architecture is a network topology where a central hub contains all the shared services and each spoke exclusively connects to the central hub. Instead of peering each spoke with each other they communicate via hub. Both hub and spoke are regular VNETs. Each spoke is not connected directly with each other until connection is established between them separately via hub or separate peering between them.

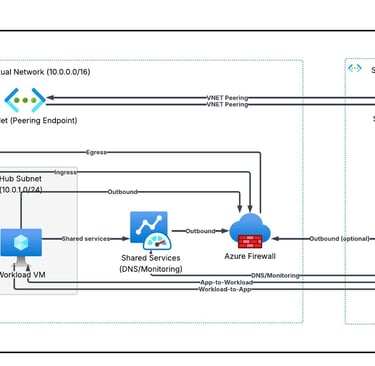

What a Hub VNET contains?

Hub contains shared services. Usually the hub has:

• Azure Firewall or Network Virtual Appliance to inspect and filter traffic.

• Centralized DNS Servers.

• VPN Gateway or Express Route Gateway to handle connection to your on-premises infrastructure.

• Bastion for secure access to VMs

• Monitoring

For example, instead of every application have its own firewall, they all use the firewall in hub.

What is Spoke?

A spoke is simply a VNET being connected to the hub. In general, each spoke presents a separate workload. Each spoke is isolated from the others unless you specifically allow communication. This improves security. All internet traffic goes through the firewall in hub.

Benefits of Hub-And-Spoke architecture:

Cost efficiency: Instead of deploying costly Firewall or Gateway in each and every application, you deploy it only in central hub.

Better security: As all traffic goes through central hub i.e; single location, it is easier for security teams to monitor, log and filter traffic.

Blast Radius Isolation: As connection is non transitive, it is unlikely that a security breach in a dev spoke will cause problem in production spoke.

Why to use multiple spokes?

• Better security isolation

• Separate Management for different teams (e.g; HR, Sales, Finance)

• Independent scaling

• Easier life cycle management

• Simpler compliance and access control

Important points to remember when setting up VNET peering:

1. The address spaces of VNET must not overlap.

2. Peering requires 2 separate links:

   a) one line from VNET A to VNET B

   b) another from VNET B to VNET A

3. Peering is not transitive by default. If VNET A is peered with VNET B, and VNET B is peered with VNET C, VNET A and VNET C cannot talk to each other. You need separate peering between them or communicate through central firewall.

4. Once VNETs are peered, the traffic between the networks travels securely across the private Microsoft backbone network.

Practical :

• Create Hub VNet

• Create HR Spoke VNet

• Create Windows VMs

• Configure VNet Peering

• Verify connectivity (after disabling Windows Firewall)

Create Hub VNET:

You will have 1 subnet (the default one which Azure creates). In next lab we will see How to create Firewall subnet and connect multiple spokes with each other.

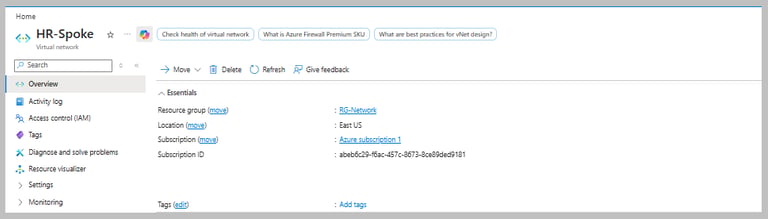

Create HR Spoke VNet

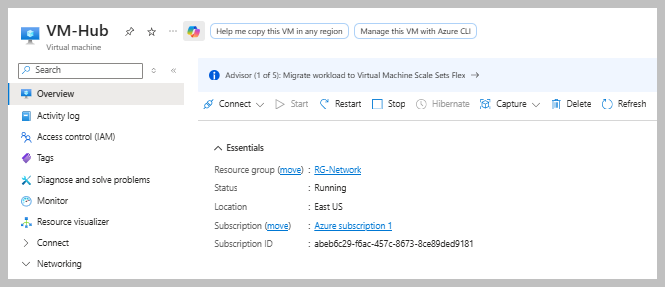

Deploy Windows VM in Hub VNET

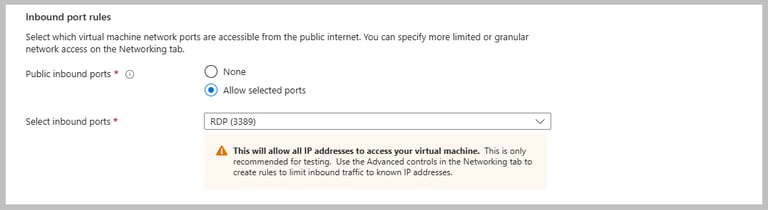

Keep RDP setting as stated below. For current lab purpose we shall connect to VM via RDP:

Deploy Windows VM in HR Spoke VNET

Allow RDP while creating VM

Add Peering:

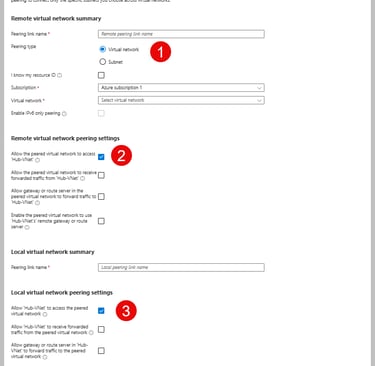

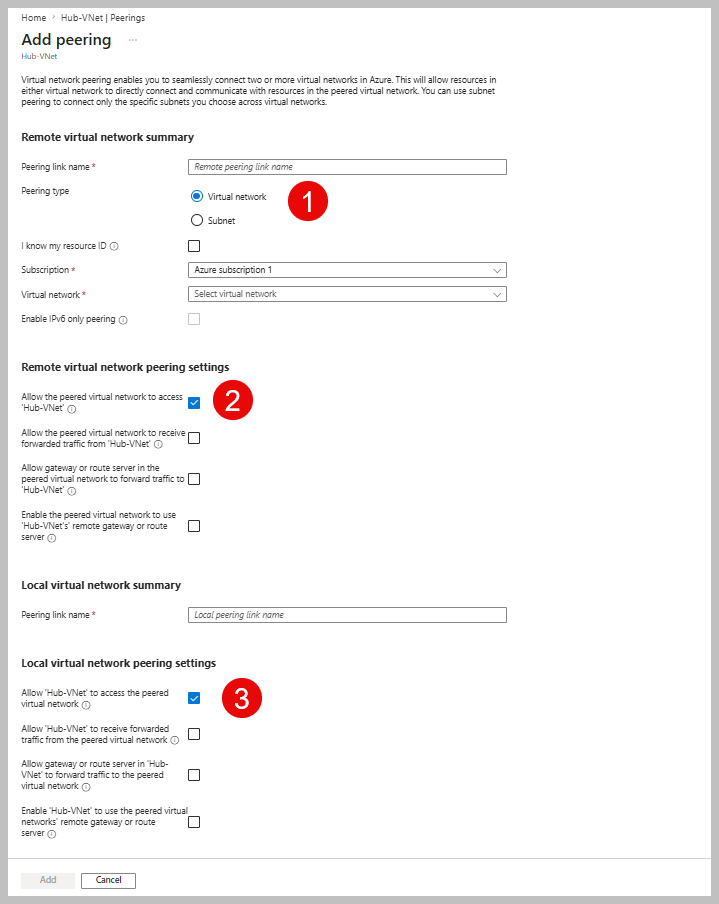

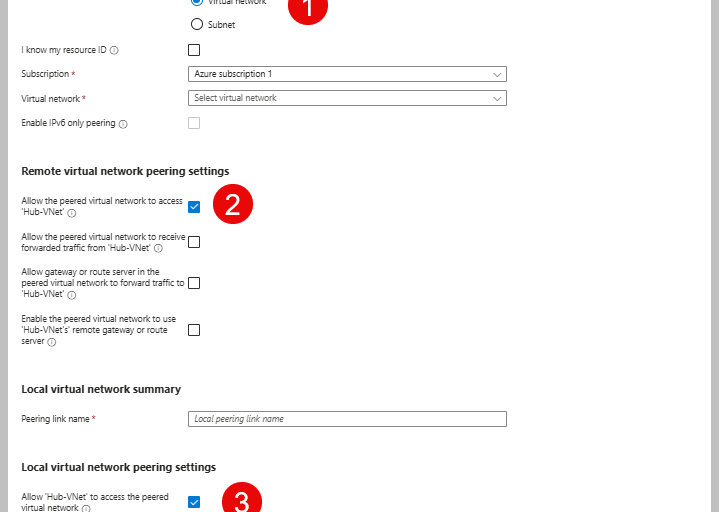

Go to Hub VNET and add peering.

Note: Because you are currently configuring the peering settings in the Hub VNet, the local settings apply to the connection from the Hub to the HR-Spoke. The remote settings define the reverse connection from the HR-Spoke to the Hub.

In above screen shot, you see different options to check, let us understand what they mean:

Peering Type:

Besides VNET Peering, we have "Subnet Peering".

Subnet peering allows peering only between selected subnets of two VNETs instead of peering the entire VNETs.

It improves security by limiting communication to only the required subnets.

For example if App Subnet of a spoke VNET is peered only with sharedservices subnet of Hub but not with Database Subnet, then App Subnet cannot communicate with Database Subnet. Database Subnet remains isolated.

Peering Settings:

Let us understand different types of settings possible while peering is done.

Below I have explained the options appearing under "Remote Virtual Network Settings". Similar meaning applies for local settings from Spoke VNET perspective.

Once peering is done, it will show peering state "connected" :

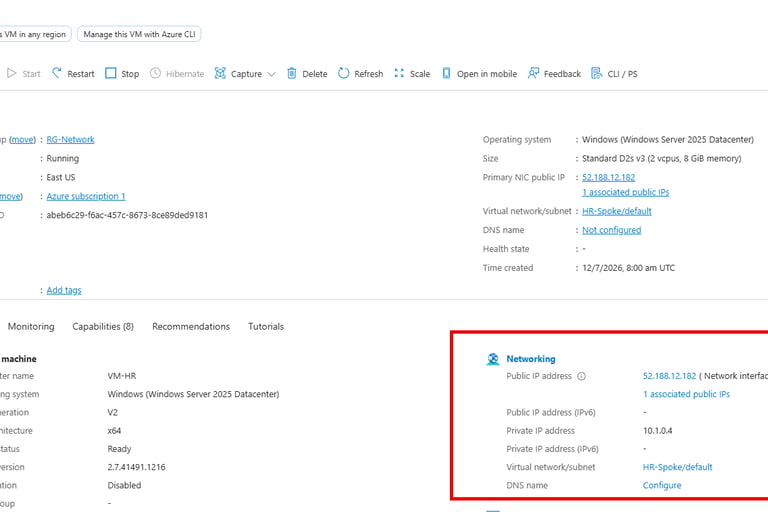

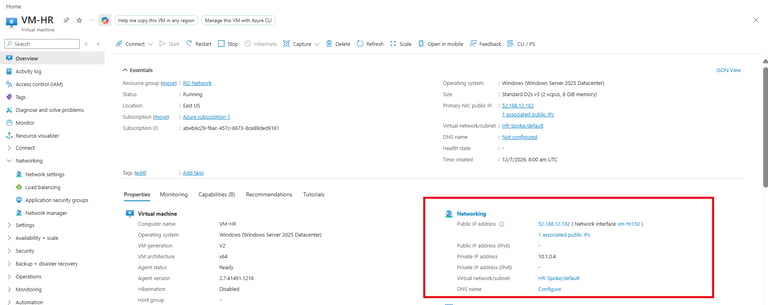

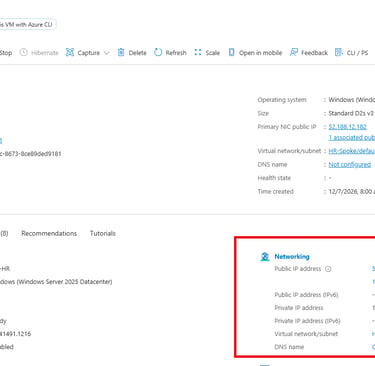

Copy private IP address of HR VM.

Connect to HR VM and disable firewall:

Run this command inside HR VM CMD:

Set-NetFirewallProfile -Profile Domain,Private,Public -Enabled False

Ensure your NSG rules do not prevent RDP connection. If you want to know more about NSG, check here.

Connect to Hub VM

Login to Hub VM and open CMD. Then ping HR VM:

ping 10.1.0.4

Expected output:

Pinging 10.1.0.4 with 32 bytes of data:

Reply from 10.1.0.4: bytes=32 time=2ms TTL=128

Reply from 10.1.0.4: bytes=32 time=1ms TTL=128

Reply from 10.1.0.4: bytes=32 time=1ms TTL=128

Reply from 10.1.0.4: bytes=32 time=1ms TTL=128

Ping statistics for 10.1.0.4:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 1ms, Maximum = 2ms, Average = 1ms

Conclusion:

At the end of the blog, we have learned what VNet peering is and how it helps in communication, what Global VNet Peering is, and why it is needed. During VNet peering, we also know now what are different kind of settings and other aspeects we need to remember. Now we are more comfortable in catching up on our next blog, where I will show how multiple spokes can communicate using a central hub and a centrally located firewall.

Stay Tuned. Sayonara. See you in my next article.
