Azure Network Security Groups (NSG) Made Simple for AZ-104

Today we shall explore the topic of Network Security Group (NSG). If you are preparing for AZ-104 or just want to strengthen your fundamentals about Azure Networking, then this is the article which could help you doing so. After going through it, I truly believe you will have more clarity and confidence regarding handling this complex topic.

[If you have missed the first part of my article on Azure Networking, see

here]

In this article, we will explore:

• What is NSG?

• NSG Rule Components

• NSG vs Firewall

• Stateful Nature of NSG

• Service Tags

• Application Security Groups

• Common AZ-104 exam points

What is Network Security Group (NSG)?

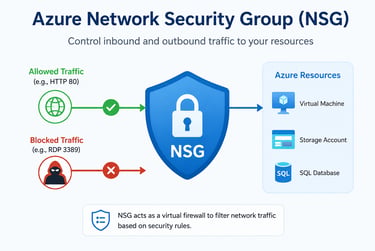

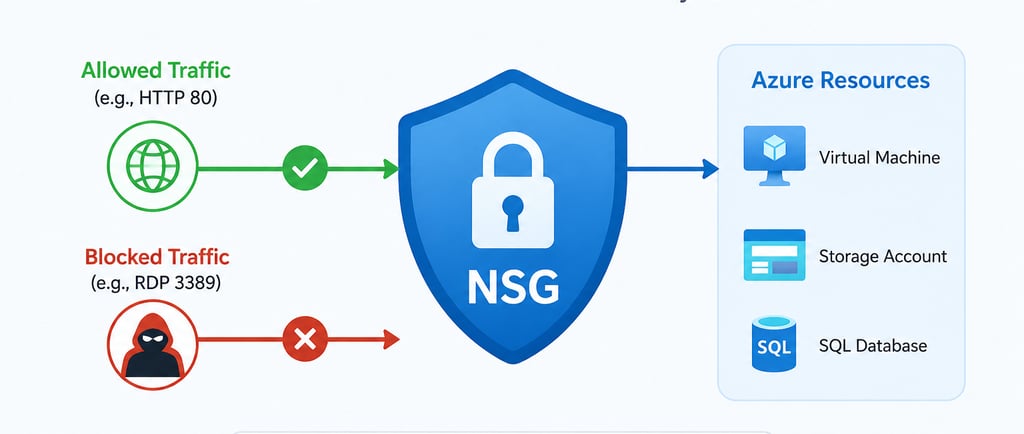

An NSG is a set of security rules that allow or deny network traffic to Azure resources. It acts like a security guard at a building entrance:

• checks incoming traffic (inbound)

• checks outgoing traffic (outbound)

• decides whether to allow or deny traffic based on rules

You can attach an NSG to

• A subnet

• A network interface (NIC) of a VM

Example:

Suppose you have a VM.

You want:

• Allow RDP (3389) from your office IP

• Allow web traffic (80, 443) from everyone

• Block everything else

You create NSG rules:

The lower the number, the higher the priority is. Rule with priority 100 has the highest priority.

NSG Rule Components:

Default NSG Rules:

Azure automatically provides default rules.

Inbound Defaults:

Outbound Defaults:

Azure Default Inbound Rules

Azure Default Outbound Rules

You cannot delete these defaults, but you can override them with higher prioritized custom rules

NSG vs Firewall

Easy Analogy

Consider NSG as Security Guard

Checks:

• Who is coming?

• Which door (part)?

• Allow or deny?

Consider Azure Firewall as Smart Security Team

Checks:

• Who is coming?

• Which application?

• Which website?

• Is it malicious?

• Would it be blocked?

Table comparison between NSG and Azure Firewall:

Use NSG when:

• Allow/block ports

• Restrict VM access

• Control Subnet traffic

• Basic Network security

When to use Azure Firewall?

• Need Centralized Security

• Filter web traffic

• Allow specific domains

• Threat intelligence

• Enterprise environments

FYI only (you do not need to know full details of OSI layers for AZ-104, but you should know the basic):

NSG Association:

An NSG can be attached to

• NIC level: only that VM is affected

• Subnet level: all resources inside that subnet are affected

What happens if NSG exists at both levels?

Traffic must be allowed by both

Think:

• Allowed at subnet + allowed at NIC = Allowed

• Denied at Subnet or denied at NIC=Denied

Stateful nature of NSG:

NSGs are stateful.

Example:

1. Inbound HTTP request allowed.

2. Response traffic is automatically allowed

You do not need a separate outbound rule for the return traffic.

This is commonly tested in AZ-104.

Example: Web Browser access

VM: 10.0.0.4

You create an outbound NSG rule.

VM sends request:

10.0.0.4:50000 -> google.com:443

port 50000 is a temporary (ephemeral) port chosen by the VM.

NSG checks:

Step 1: outbound to port 443? Yes

Allow

Step 2: Google responds:

google.com:443 -> 10.0.0.4:50000

Notice the return traffic is inbound but you do not need to create a separate inbound rule allowing port 50000.

What are Service Tags?

It is important to understand for AZ-104.

Instead of entering IP ranges manually, Azure provides Service Tags.

Common Service Tags:

A service tag is a Microsoft managed group of IP addresses for an Azure Service. Instead of manually entering hundreds or thousands of IP addresses, you use a friendly name.

Suppose your VM needs to access Azure Storage without Service Tags.

NSG Rule:

Destination: 20.150.1.0/24

Destination: 20.151.2.0/24

 — — — -

 — — — -

Hundreds of more IPs

Also, if Microsoft changes the IP ranges : Your rules become outdated

With Service Tag:

You simply select service tag: Storage

Service tags are Microsoft managed, you cannot create them. Azure automatically manages the underlying IP addresses under a service tag.

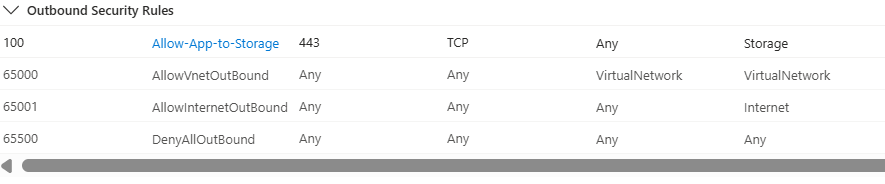

Outbound NSG rule with service tag

Subnet Level NSG:

So far we have seen how to create NIC level NSG.

But as we have mentioned earlier, we can also create NSG at subnet level.

Consider the previous scenario where we have allowed the outbound traffic from our APP VM to Azure Storage. But what if it is blocked at subnet level? When an NSG rule is defined at subnet level, it impacts all VMs in that subnet.

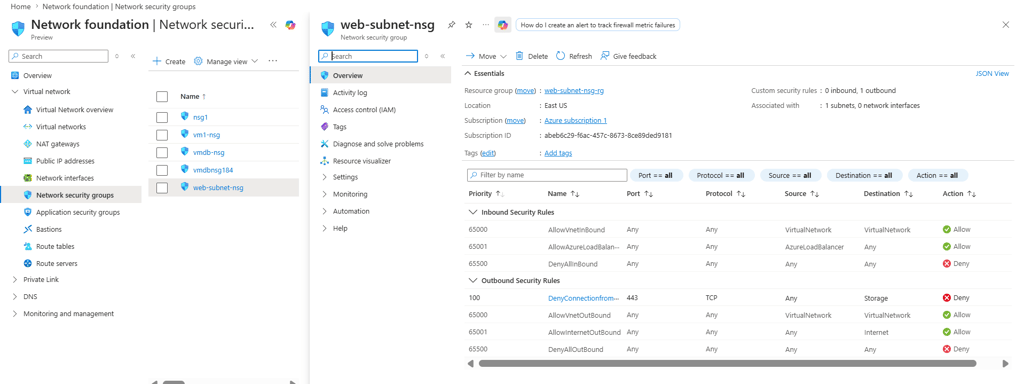

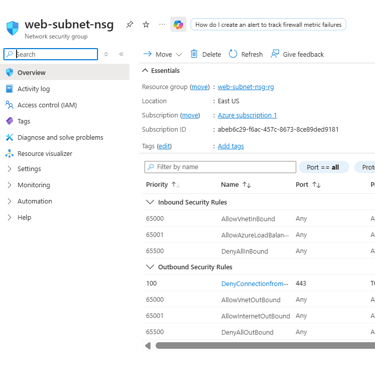

NSG Rule 100 denying traffic to Azure Storage

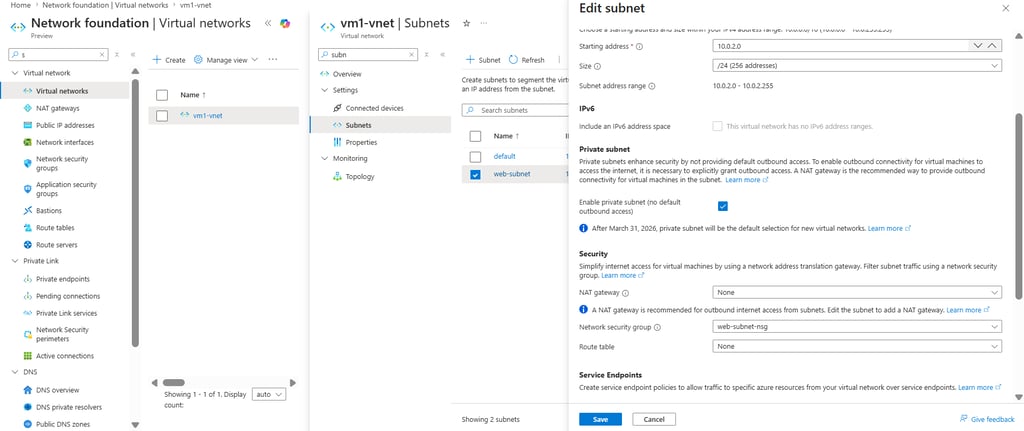

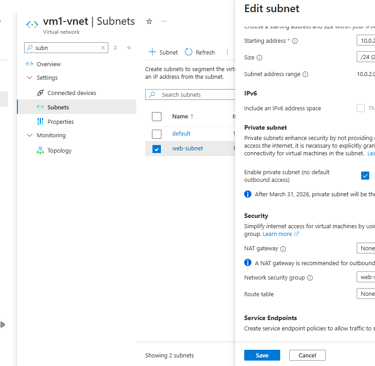

Attach the NSG rule to Subnet

What happens further?

The outbound traffic to Azure Storage is denied. To allow the traffic, it must be allowed at both levels (NIC + Subnet).

Application Security Groups:

ASGs let you group VMs logically.

Example:

You have Web services, App Servers, DB Servers

Rules become:

Web ASG -> App ASG: Allow 8080

App ASG ->DB ASG: Allow 1433

For ASGs to work in an NSG rule, all related VMs must be part of a same VNET. Without ASG, you can have NSG rule associating VMs belonging to different VNETs.

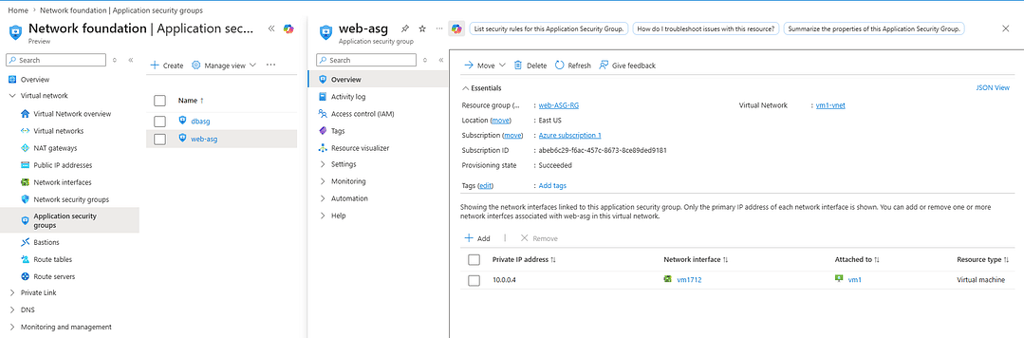

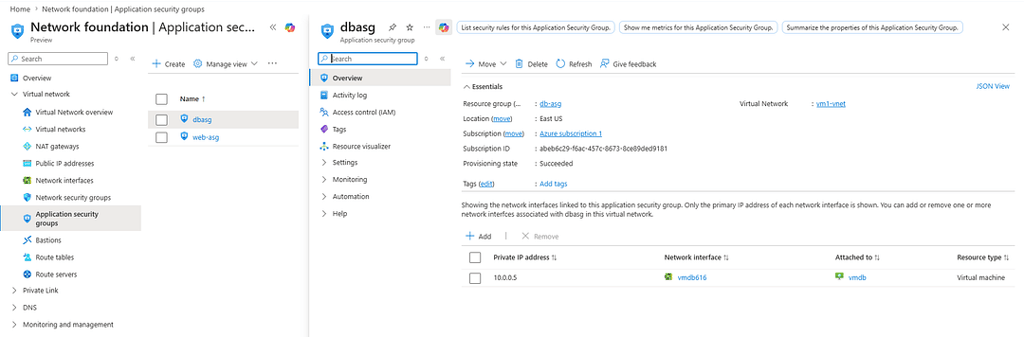

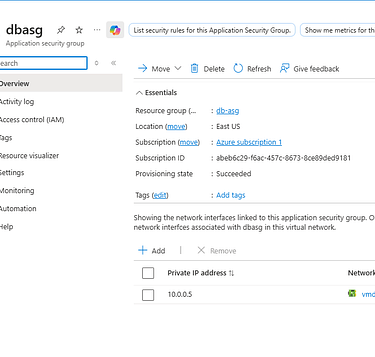

Below is DB ASG:

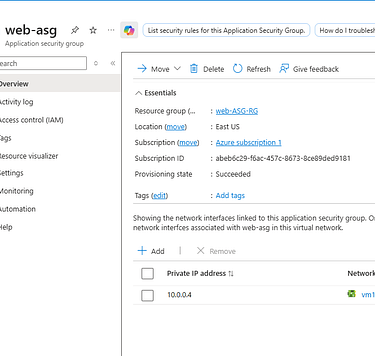

APP ASG:

Both VMs are associated with vm1-vnet.

Now create inbound security rule in db VM NIC:

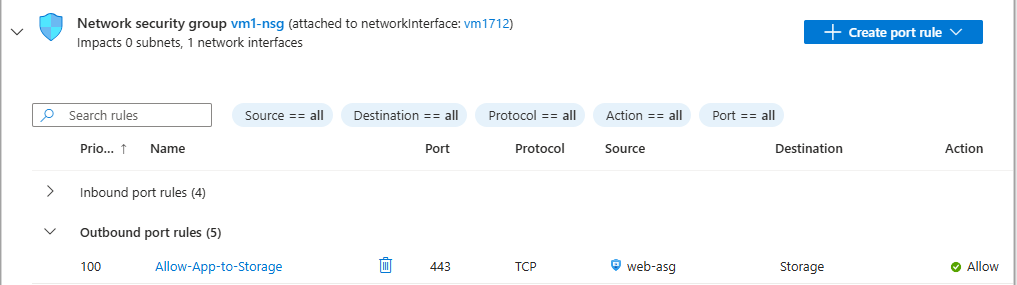

NSG rule with ASG as source and destination

In most cases, you do not need to create outbound rule to allow traffic from App VM to DB VM as you already have Azure default outbound rule in place.

You would need separate outbound rule if you have restricted outbound traffic (Deny) with higher priority (e.g; 110) from your App VM. Then you would require to define another rule with 100 or any higher priority number (priority starts since 100) to allow outbound traffic as 65000 (lower priority) rule will never be reached in this specific situation.

Service Tag vs Application Security Group:

Service Tag represents Azure Services, ASG represents your VMs

Service Tags are created by Microsoft, you create ASG yourself.

Example combining both:

All web servers-> can access -> Azure Storage

Common AZ-104 exam points:

1. NSG filters inbound and outbound traffic

2. NSG works at subnet and NIC levels

3. NSG is stateful

4. Rules are processed by priority number (lower number first)

5. You can set priorities anywhere from 100 up to 4096

6. Default rules exist and cannot be removed

7. Deny always wins if traffic is denied by either subnet or NIC NSG

8. NSG operates mainly at Layer 3 and Layer 4 (IP, Port, Protocol)

9. Azure Firewall provides more advanced filtering than NSG

10. Service tags reduce IP management

11. ASGs simplify rule management of groups of VMs

Tip: Create NSG rules with gaps between priority numbers: 100, 110, ….

So if you later need to accommodate some new rule in between, you are able to do so.

Conclusion:

As we have studied about NSG, now we have better clarity how it works, why it is needed and what it covers, what it does not.

Thank you for reading and see you in my next article.
